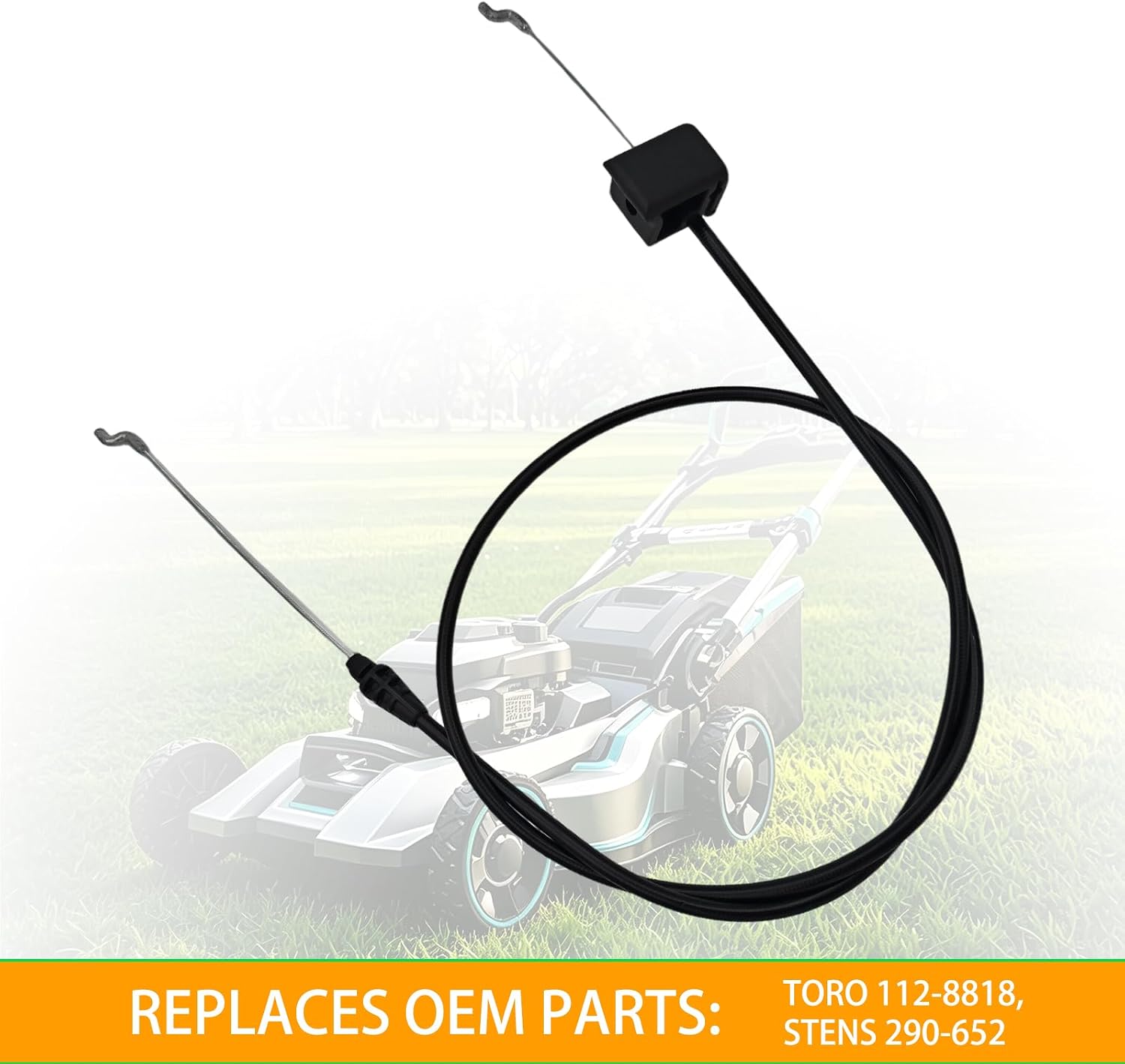

Brake Cable 112-8818 for Toro Lawn-Boy 20in 22in Mulching/Rear Lawn Mower fit 10603 10604 10642 10646 20314 20316 20323 20330 20331 20338 20339 20371

Installtion Guide⚠Warning: befor replacement parts work, Make sure the engine is cool, disconnect the spark plug boot/wire. If you need to put the mower down sideways, you drain the gas tank.Preparation tools: Phillips screwdriver, Wrench, Wire cutters, Pliers, Work gloves.●step 1: Note the position of the traction control cable then remove the nut and washer and slide the brake cable support off of the bolt. Unhook the z-end of the traction cable from the control bail arm and detach the cable from the support.●step 2: Release the z-end of the brake cable from the brake bail arm. ●step 3: Use a needle-nose pliers depress the plastic tabs on either side of the cable’s locking mechanism release the old brake cable from the bracket and detach the opposite z-end from the brake lever.●step 4: Install the new brake cable by first sliding it through the cable guide. Insert the z-end into the brake lever and snap the cable into the bracket and the opposite z-end into the brake bail arm.●step 5: Insert the traction cable in the brake cable support and attach the z-end to the control bail arm. Slide the support onto the bolt replace the washer then thread the nut on.●step 6: Adjust position the traction control cable and tighten the nut to secure.Toro 20" & 50cm Walk-Behind Mower20314 -(SN:311000001-311999999) (2011) 20316 -(SN:311000001-311999999) (2011)20318 -(SN:313000001-313999999) (2013) 20323 -(SN:310000001-310999999) (2010)20323 -(SN:311000001-311999999) (2011) 20323 -(SN:312000001-312999999) (2012)29639 -(SN:310000001-316999999) 29641 -(SN:290000001-290999999) (2009) 29642 -(SN:310000001-312999999) 29643 -

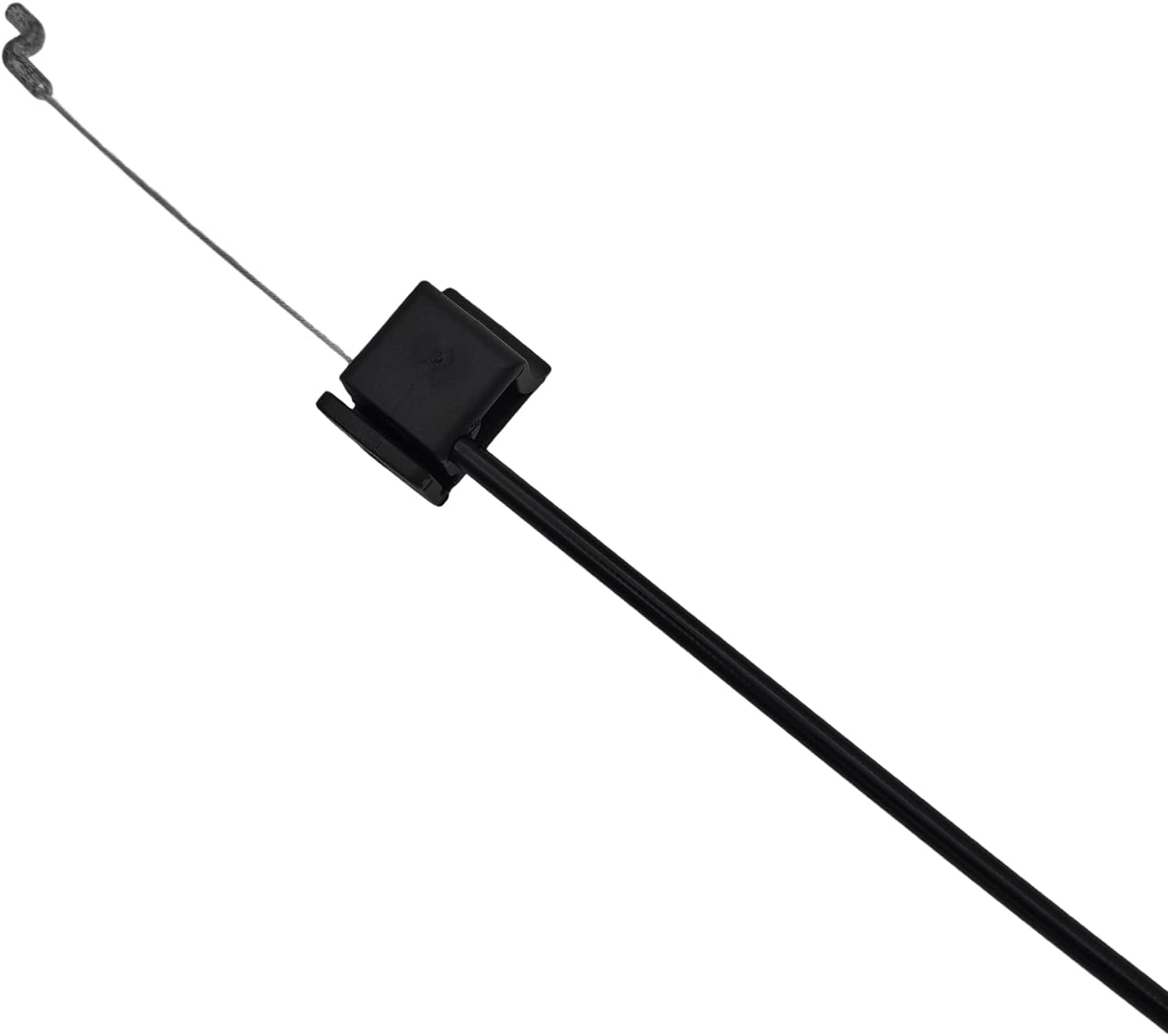

• Package Includes: 1 x 112-8818 Brake Cable. SPEC: 50" Total Length; 37.5" Cable length. Suitable for Toro Lawn Mower brake cable replacement.
• Replace Part Number: 112-8818. Compatible with Toro 20in & 50cm Mulching/Rear Walk-Behind Mower 20314, 20316, 20318, 20323, 29639, 29641, 29642, 29643. Toro 22in & 55cm Rear Walk-Behind 20330, 20330C, 20331, 20331C, 20338, 20339, 20339C, 20350, 20351, 20370, 20371, 20377, 20954.
• Compatible with: Lawn-Boy 20in Mulching/Rear Bagging Lawn Mower 10603, 10604, 10606, 10623, 10624, 10634, 10640, 10640C, 10641, 10641C, 10642, 10642C, 10643C, 10644C, 10645, 10646, 10647, 10648C, 10649C, 10650C. Lawn-Boy 21in Mulching/Rear Bagging Lawn Mower models:10732, 10734, 10738, 17732, 17734.
• Easy to Install: It should take you about 15 minutes to 30 minutes. Preparation tools: Phillips screwdriver, Wrench, Wire cutters, Pliers, Work gloves. You can refer our Product Description to replace the Toro lawn mover brake cable.
• Manufactured with the highest quality materials, ensuring durability and reliability to keep outdoor equipment functioning at its best. Our store is dedicated to providing top-quality replacement parts designed to keep Lawn Mover equipment in optimal working condition.
